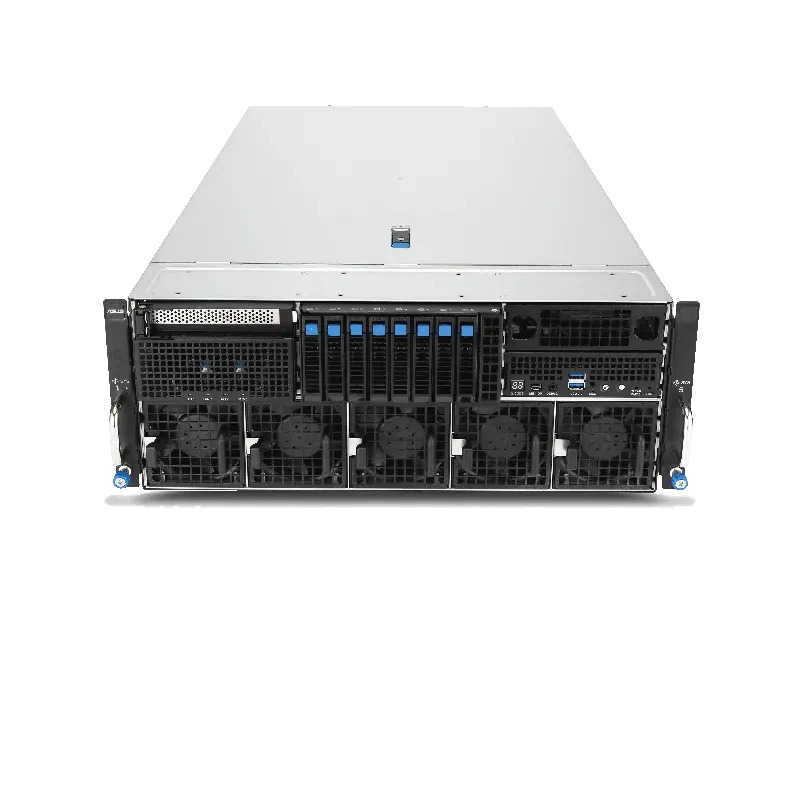

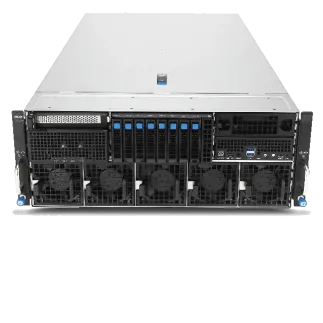

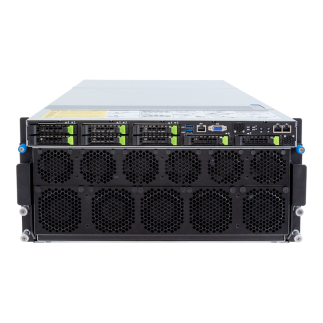

AI HPC Server APY SCG 4U 8 GPU NVIDIA HGX H200 SXM Intel Xeon Scalable
Product available for orders
The new APY Nvidia HGX H200 Compute Server is a 4U server designed for generative artificial intelligence and high-performance computing (HPC). This is an NVIDIA certified system with HGX H200 SXM GPU and 5th or 4th generation Intel Xeon Scalable processor.
The APY Compute Server is a 4U server designed for generative artificial intelligence and high-performance computing (HPC). It is an NVIDIA certified system that incorporates the latest technologies to deliver exceptional performance and scalability.
Processors
This server supports two 5th or 4th generation Intel Xeon Scalable processors, offering up to 64 cores and 128 threads per processor. The Intel Xeon CPU Max series is also supported, achieving a maximum computing power of 350W per processor.
Memory
The server has 32 DIMM slots for DDR5 RDIMM memory, with a maximum capacity of 4 TB per processor. This configuration allows you to run memory-intensive applications smoothly.
GPU
The APY server is equipped with 8 NVIDIA HGX H200 GPUs with SXM connectors. These GPUs deliver breakthrough performance for AI and HPC, with 900 GB/s GPU-to-GPU bandwidth using NVLink and NVSwitch technologies.
Storage
The server has 8 2.5-inch SATA/SAS/NVMe hard drive bays. Support for RAID 0, 1, 5, 10 and JBOD helps ensure data security and availability.
Network
It is equipped with 2 10 GbE Ethernet ports and a Gigabit Ethernet port. This configuration enables high-speed network connectivity to meet the needs of the most demanding applications.
Others
The server is powered by a redundant 3000 W power supply and has an optimized air cooling system to ensure reliable and stable operation.
Strengths
High performance for generative AI and HPC Large memory and storage capacity High GPU-to-GPU bandwidth Cooling-optimized design NVIDIA certified
This server is an ideal choice for data centers that need a powerful and versatile server for generative AI and HPC.
Technical specifications Processors: 2x 5th or 4th generation Intel 2x 3000W redundant Cooling: Air
APY-4UIAintelxeon8GPUHGXH200
Data sheet
Case size
Rack 4U
Dimensions
447mm x 222,25mm x 945mm
CPU brand
INTEL
processor range
Intel Xeon Scalable
Number of graphics card(s) supported
8
Graphics card brand
NVIDIA
Default graphics card
NVIDIA HGX H200
Solutions logiciels
AI
Specific References
The new APY Nvidia HGX H200 Compute Server is a 4U server designed for generative artificial intelligence and high-performance computing (HPC). This is an NVIDIA certified system with HGX H200 SXM GPU and 5th or 4th generation Intel Xeon Scalable processor.
